Choosing a 12v Caravan Pump - A Buyers Guide

The best 12v caravan pump is a water pump which will operate quietly and with no fuss for many years. Your 12v caravan pump will be able to handle pumping a small amount of water at the kitchen sink or basin, or able to handle one or two taps (shower and sink) operating at the same time without making the person in the shower scream because the water has gone cold!

Everyone has a different budget and caravan size to work with when purchasing and there are a huge variety of caravan water pumps available for every budget and every set-up. Water Pumps Now has a large range of quality affordable caravan pumps to make sure we have a 12v caravan water pump to suit you.

To pick your pump you need to know whether you require a 12 volt or 24 volt caravan pump and how many taps you want to run in your camper-trailer, caravan, RV or bus.

The best caravan pump is not the biggest pump you can buy. Always buy the correct pump size to suit your van. 60PSI is normally too high a pressure for a caravan unless it has 5 to 6 outlets.

Single Tap

If there is only one tap/outlet in your camper-trailer or caravan (say the kitchen sink) then you will only require a caravan pump which will deliver what you kitchen tap would use at full flow. If your tap flows up to 5 L/min then the best caravan pump is one which will deliver this amount over the one minute.

Two Taps

If you have two outlets in your caravan, say a sink and a shower, the best caravan pump for your setup is the one which can deliver enough water flow to both outlets if they are in use at the same time. This is determined by how many litres per minute each of your outlet delivers. Add the two amounts up and purchase a pump which will deliver the required amount. Typically a 12v water pump delivering around 9 to 12 L/min will suit best.

Three Taps

If you have 3 outlets in your caravan you will require your caravan pump to deliver around 12 L/min in case all outlets are in use at the same time. Typically you may have someone in the shower whilst someone else uses the kitchen sink.

 Typical 12v 24v 240v Escaping Outdoors water pump set up

Four Taps

A four tap/outlet caravan, bus or RV usually will have a toilet, shower, vanity basin and kitchen sink. Typically the best 12v caravan water pump for your set up is one which will deliver up to 17 L/min if a number of these outlets are being used at once.

Five taps

A five tap setup will usually have a washing machine together with a sink, basin, toilet and shower. In order to run a number of these outlets at the one time you will require your caravan pump to deliver up to 22 L/min.

Water Pumps Now Caravan Pump ranges are:

  • Escaping Outdoors FL pumps
  • Jabsco Par-Max pumps
  • Shurflo pumps
  • Flojet pumps

Once you decide on your budget range then we can assure you get the best caravan pump so it works so smoothly every time. You will forget it is even there!

How to match your pump to your Gas Hot Water Heater?

If you have a gas hot water system, please check the specifications on what PSI is required to ignite the pilot light so the gas hot water system will operate. If the gas hot water specifications use the term "Bar" then 1 Bar = 14.5 PSI or "KPa" then 6.89 KPa = 1 PSI.

Which Escaping Outdoors FL Water Pumps are best for caravan use?

The cheapest alternative is the Escaping Outdoors FL diaphragm pressure pump range. They are an excellent caravan pump, widely used throughout Australia since 2004 and will last for years and years using both salt and freshwater. They do not have a return valve or built in bypass so you will need to match your caravan pump to your system a little more closely and add a small pressure tank ( accumulator tank ) if required to balance your water flow (the pressure PSI) in your system. An accumulator tank provides a constant and consistant water flow and reduces water hammering and cycling. Escaping Outdoors pumps come with a 12 month Australian Warranty with spare parts and technical help available 7 days a week.

1 tap 4.5 L/min - FL2202 12v

2 taps 9.3 L/min - FL30 12v

(This pump provides low pressure 17PSI)

2 to 3 taps 12.5 L/min - FL35 12v

4 taps 17 L/min - FL40 12v

4 taps 17 L/min FL44 24v

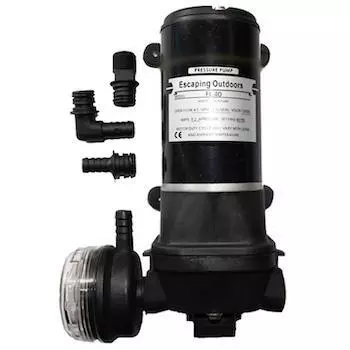

Escaping Outdoors FL40 12V caravan diaphragm pressure pump

Which Jabsco Pumps are best for caravan use?

The Jabsco Parmax range of pumps are marine grade and can be used in either caravans or boats. The built in bypass in these caravan and marine water pumps lowers pulsation and noise and there is no need for an accumulator tank in most systems, however if you have constant water hammering or cycling in your system, Jabsco also recommend an accumulator tank to minimise and alleviate this issue. Jabsco caravan pumps are available in 12V and 24V water pumps with a 3 year manufacturers warranty.

1 to 3 taps - 11 L/min - 40PSI - 12v J20-202 - 24v J20-205

1 to 3 taps 11 L/min - 60PSI - Heavy Duty - 12v J20-208

up to 4 taps 15 L/min - 40PSI - Heavy Duty - 12v J20-210

up to 4 taps 15 L/min - 60PSI - Heavy Duty 24v - J20-211

4 to 5 taps 19 L/min - J20-280 12v or J20-285 24v

5 to 6 taps 22.7 L/min - J20-284 12v or J20-285 24v

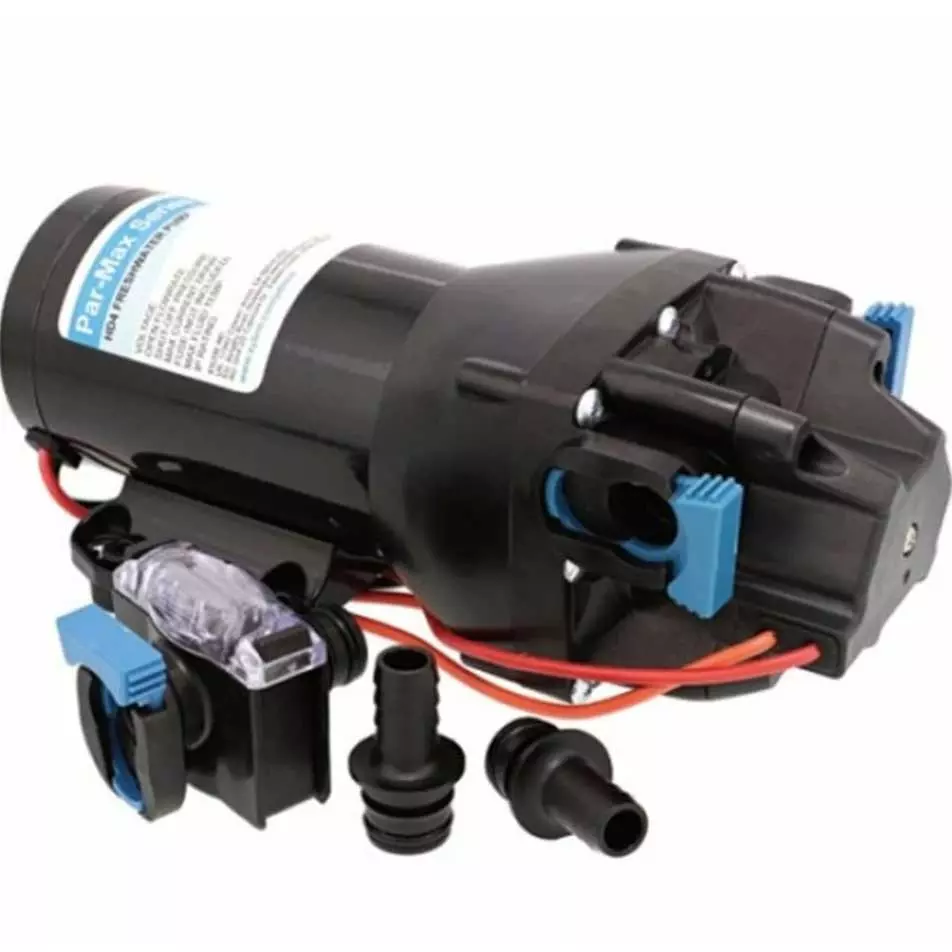

 Jabsco J20-208 12v 60PSI water pump - Water Pumps Now Australia

Which Shurflo Water Pumps are best for caravan use?

The Shurflo range of automatic freshwater pressure pumps are widely used throughout the world as caravan pumps and include a built in mechanical bypass function enabling these pumps to vary the flow rate for any on-demand condition, without cycling and without the need for an accumulator / pressure tank. Features a 3 year limited warranty and also available in a 24 volt model.

2 to 3 taps 11.3 L/min RWB5904 12v or RWB5906 24v

4 taps 15 L/min - RWB5900 12v or RWB5901 24v

4 taps 19 L/min - RWB5902 12v or RWB5903 24v

 Shurflo Fresh 5 24v caravan marine freshwater pressure pump

Which Flojet Water Pumps are best for caravan use?

1-2 taps 11 L/min - FJ100



Browse Water Pumps Now Australia full range of 12v pumps or 24v pumps.

If you need any assistance or would prefer to order over the phone, please don't hesitate to phone us on 1300 411 366.

 Flojet FJ100 12v caravan water pump Water Pumps Now
